Seed and grain specific gravity machine is an agricultural machinery equipment that uses the specific gravity difference of grain seeds to clean and grade them. It is widely used in seed processing, grain processing and other fields.
Working principle of specific gravity machine:
The core principle of the seed and grain specific gravity machine is to use the difference in specific gravity (density) and aerodynamic characteristics between seeds and impurities (or seeds of different qualities) to achieve separation by combining vibration and airflow. The details are as follows:
- Gravity differences: Different types of seeds, seeds with different degrees of fullness, and impurities (such as shriveled seeds, broken seeds, grass seeds, mud and sand, etc.) have different specific gravity. For example, full grain seeds have a higher specific gravity, while shriveled seeds or impurities have a lower specific gravity.
2. Vibration and airflow work together: When the equipment is working, the material is mainly affected by two forces: wind force and vibration friction. Under the action of wind force, the material is suspended. At the same time, the vibration friction causes the suspended material to be layered, with the light ones on top and the heavy ones on the bottom. Finally, the vibration of the specific gravity table causes the lighter impurities on the upper layer to flow downward, and the heavy finished products on the lower layer climb upward, thus completing the separation of material and impurities.

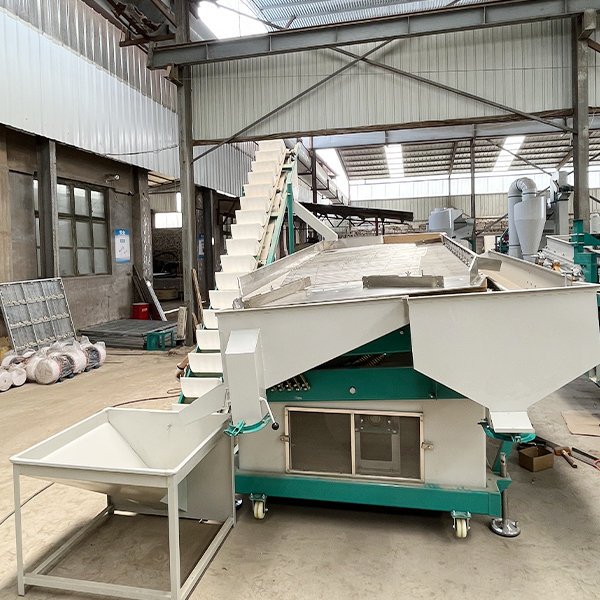

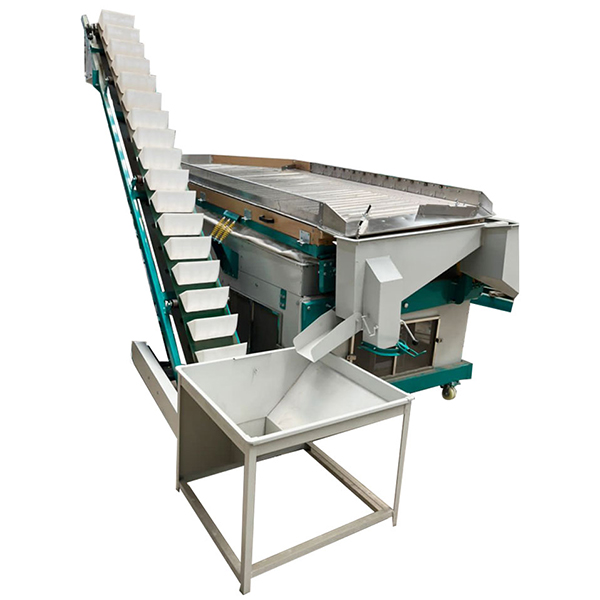

The structure of the specific gravity machine
Drive motor: can be customized according to local voltage
Specific gravity table: the table top is a stainless steel woven mesh, which can directly contact the grain and is food grade
Wind chamber: 7 wind chambers, that is, 7 fan blades
Blower: make the wind blow more evenly
Spring sheet and shuttle spring: shock absorption, making the bottom more stable
Inverter: adjustable vibration amplitude
Measured grain (optional): increase production
Dust cover (optional): dust collection

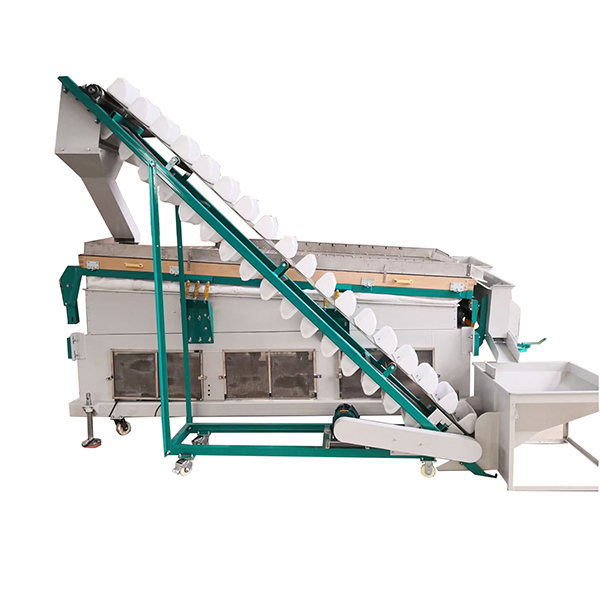

Return material outlet: the mixed material can be discharged from the return material outlet outside the machine, and returned to the hopper through the ramp elevator to re-enter the screening, increasing production and reducing waste.
Advantages and Features
1、High separation efficiency: It can effectively distinguish materials with small differences in specific gravity, and the cleaning accuracy can reach more than 95%, meeting the high standards of seed processing.
2、Strong adaptability:The vibration parameters and air volume can be adjusted to adapt to different types of grain seeds with different moisture contents, as well as different cleaning and grading requirements.
3、High degree of automation: Modern gravity machines are mostly equipped with intelligent control systems that can monitor material status in real time and automatically adjust parameters, reducing manual operations and improving production efficiency.
