The destoner in grain cleaning equipment plays a crucial role in accurately separating heavy impurities such as stones, mud, and metal fragments from grains. It is a key piece of equipment to ensure the safety of subsequent processing and the quality of the finished product.
Professional machine for removing stones from grains and rice and sesame seeds.

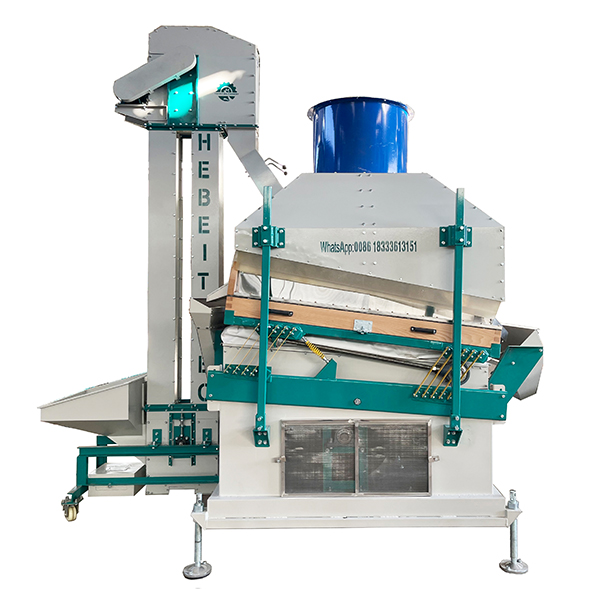

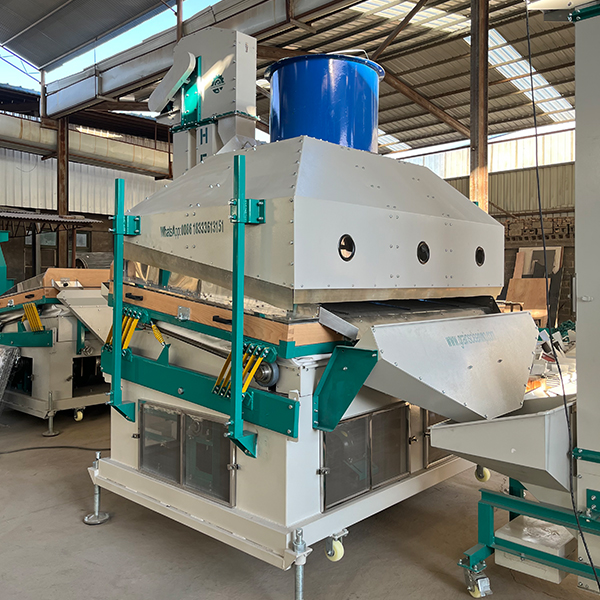

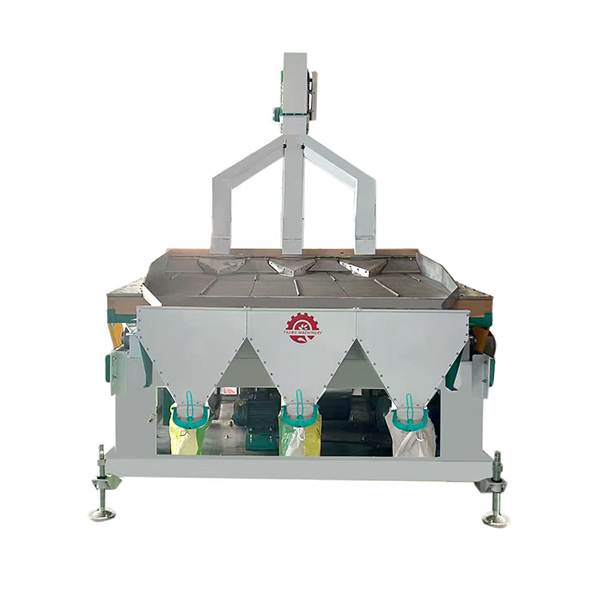

TBDS-7 / TBDS-10 blowing type gravity de stoner is to separate stones through adjusting wind, Larger proportion material stone will be moved from bottom to upper position on the gravity table, the final products such as grains, sesame seeds and beans will flow to the bottom of the gravity table.
It combines low speed no broken bucket elevator and stainless steel gravity table, wood frame, wind box, transducer, vibration motor and fans motor, Frequency converter for different grains, beans, sesame seed.
Bucket Elevator: Loading the cleaner, without any broken.
Stainless steel gravity table：Used for food processing.
Wood frame of gravity table : for supporting long time using and high efficient vibrating.
Wind box: for blowing the material to separate the stones and grains become two layers.
Frequency converter :Adjusting the vibrating frequency for suitable different material.
1. Core Functions: Three Key Values
The function of a destoner can be discussed from three dimensions: processing safety, finished product quality, and equipment protection. Each aspect directly impacts production efficiency.
Ensuring Finished Product Quality: Heavy impurities such as stones and mud, if mixed into the finished product (e.g., rice, flour), will seriously affect the taste and may even cause injury to consumers, damaging the product’s reputation.
Protecting Processing Equipment: Grains undergo high-speed processing in equipment such as rice mills and flour mills. Hard impurities such as stones and metal fragments will directly wear down core components of the equipment, such as rollers and screens, shortening equipment lifespan and increasing maintenance costs.
Reducing Production Risks: Some heavy impurities (such as metal fragments) may collide with the equipment during high-speed processing, generating sparks and posing a safety hazard of dust explosion. The destoner can mitigate this risk in advance.
2. Working Principle: Separation Based on “Specific Gravity Difference”
The destoner primarily utilizes the density difference between grains and heavy impurities, combined with the combined action of airflow and vibration to achieve separation. The specific process consists of three steps:
Separation: After grains and impurities enter the inclined screen of the destoner, the screen vibrates simultaneously, and airflow blows upwards from the bottom. At this time, the less dense grains are lifted by the airflow and remain in the upper layer; the denser heavy impurities, being less easily lifted, sink to the lower layer and adhere tightly to the screen surface.
Separation: Due to the inclined screen and continuous vibration, the heavy impurities in the lower layer gradually move towards the “impurity outlet” along the inclination direction of the screen surface; the grains in the upper layer, affected by vibration and airflow, move towards the “grain outlet,” opposite to the impurities.
Purification: A small amount of grain mixed with heavy impurities is blown back into the grain layer by the secondary airflow below the screen surface, ensuring that grain is not wasted and that the separated heavy impurities contain almost no qualified grains.
The advantages of our stone removal machine:
● Easy to operate with high performance.
● High Purity :99. 9% purity especially for cleaning sesame and mung beans
● High quality motor for seeds cleaning machine, high quality Japan bearing.
● 7-20 Ton per hour cleaning capacity for cleaning different seeds and clean grains.
● Non broken low speed bucket elevator without any damage for the seeds and grains.
