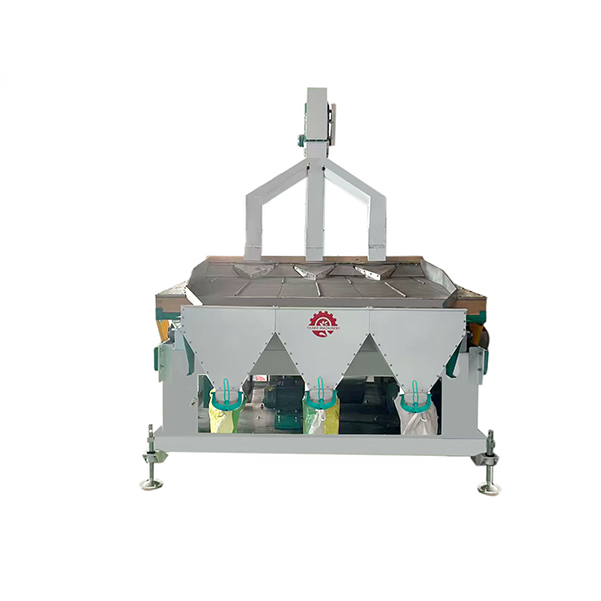

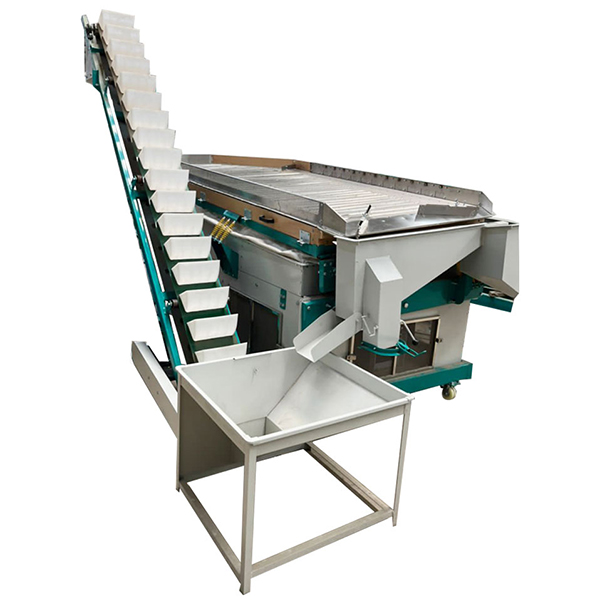

The core principle of the beans gravity separator (or gravity destoner/sorter) lies in harnessing the differences in specific gravity (density) between beans and impurities. By synergistically combining three forces—vibration, airflow, and screen inclination—it achieves precise stratification and separation. Consequently, it serves as a pivotal piece of equipment in bean processing lines for removing “companion stones” (stones of similar size to the beans) and moldy grains.
1. Feeding and Fluidized Stratification
The beans are uniformly distributed across an inclined, scale-like (or stainless steel woven mesh) sieve surface by a material-leveling device. A fan located beneath generates a uniform upward airflow, causing the material to enter a “boiling fluidized state.” Simultaneously, the sieve body undergoes high-frequency, low-amplitude reciprocating vibration.
Heavy Materials (stones, soil clumps, plump beans): Possessing high density and high inertia, these sink to remain in close contact with the sieve surface, where their movement is primarily governed by vibration and frictional forces.
Light Materials (shriveled grains, moldy grains, insect-damaged grains, broken beans, straw): Possessing low density, these are lifted by the airflow and suspended in the upper layer, where their movement is primarily governed by the airflow and gravity.
2. Trajectory Separation (Core Mechanism)
The sieve surface features both a longitudinal inclination (lower at the feed end, higher at the discharge end) and a lateral inclination; the direction of vibration is oriented toward the higher end of the sieve surface.
Heavy Impurities (stones/soil clumps): Remaining in contact with the sieve surface, these “climb” toward the higher end of the sieve along the direction of vibration, eventually being discharged through the stone outlet.
Qualified Beans: Possessing an intermediate specific gravity—falling between that of the heavy impurities and the light impurities—these flow toward the central discharge outlet for collection, guided by the combined effects of the sieve vibration and the airflow.
Light Impurities (shriveled/moldy grains): Suspended in the upper layer, these drift laterally toward the lower side of the sieve surface (along the lateral inclination), eventually being discharged via the air suction system or the impurity outlet.
3. Adjustable Parameters for Adaptation
By adjusting parameters such as air pressure (fan frequency), vibration amplitude/frequency, sieve surface inclination, and feed rate, the machine can be precisely adapted to handle various types of beans (e.g., soybeans, mung beans, kidney beans) and accommodate different impurity characteristics, thereby ensuring high separation accuracy.
II. Core Advantages (Bean Cleaning Applications)
1. High Separation Precision: Solving the “Companion Stone” Challenge
Specifically designed to remove “companion stones” and mud lumps—impurities with particle sizes similar to beans that conventional screens cannot separate—achieving a destoning rate of ≥95%.
Precisely eliminates moldy, insect-damaged, shriveled, and broken beans; ensures a finished product purity of ≥98%, significantly elevating the commercial grade and market value of the beans.
2. Non-Destructive Sorting: Preserving Bean Integrity
The entire process involves no mechanical compression or crushing. For high-value bean varieties (such as kidney beans and chickpeas), this maximizes particle integrity and minimizes product loss.
3. Multi-functional Integration: Streamlining Production Workflows
Simultaneously executes three key processes: destoning, light impurity removal, and grading (separating plump from shriveled grains). This reduces the need for separate air classifiers and sieving equipment, shortens the overall production line length, and lowers both equipment investment and maintenance costs.
4. High Adaptability: Flexible Handling of Diverse Varieties and Conditions
Compatible with a wide range of bean varieties, including soybeans, mung beans, red kidney beans, pinto beans, and chickpeas. Switching between varieties requires only a simple screen change or minor parameter adjustment.
Features variable-frequency control for airflow and vibration, allowing it to flexibly adapt to raw materials with varying moisture levels and fluctuating impurity content, ensuring robust operational stability.
5. High Efficiency, Low Consumption: Ideal for Large-Scale Production
Processing capacity ranges from 3 to 40 tons per hour (depending on the model), far exceeding manual sorting capabilities and reducing labor costs by over 80%.
Utilizes a negative-pressure/sealed dust removal system to prevent dust leakage and ensure compliance with environmental standards. Features a variable-frequency fan design for low energy consumption and minimal operational noise (≤75 dB).
6. Durable Construction, Easy Maintenance
The screen surface is constructed from food-grade stainless steel woven mesh or “fish-scale” perforated plates, offering excellent resistance to abrasion and corrosion for a long service life.
Features a modular design that allows for easy disassembly and cleaning, eliminating “dead zones” for dirt accumulation and ensuring full compliance with food processing hygiene standards.
Distinctions from Other Equipment (Bean Cleaning Line)
Beans Air-Screen Cleaner: The air-screen cleaner focuses on separation based on particle size and suspension velocity (removing straw, dust, and coarse impurities); the gravity separator focuses on separation based on specific gravity (removing “companion stones” and moldy grains). These two machines are typically used in tandem, arranged sequentially.
Beans Color Sorter: The color sorter sorts based on color and visual defects (removing discolored grains and grains with mold spots); the gravity separator sorts based on density (removing heavy impurities and hollow/shriveled grains). These machines are used complementarily to enhance the purity of the finished product.
IV. Typical Processing Flow (Bean Cleaning Line)
Raw Material → Preliminary Cleaning Screen (Removes large straw / soil clumps) → Gravity Separator (Removes stones + Removes shriveled grains) → Air-Screen Cleaner (Refined impurity removal) → Color Sorter (Precision sorting) → Finished Product Packaging.
