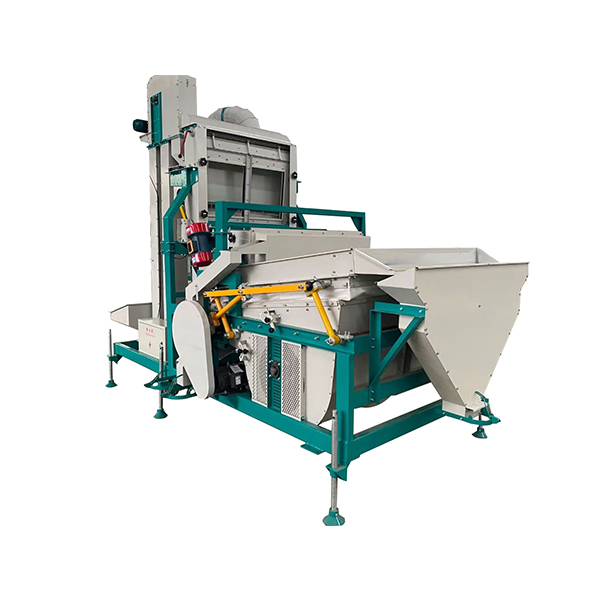

TAOBO seeds Air-Screen Gravity Separator: Working Principles
The Air-Screen Gravity Separator integrates three core principles—vibratory screening, multi-stage air classification, and gravity-based density separation—to perform impurity removal, purification, and grading in a single, unified process. It is particularly well-suited for processing sesame seeds, chia seeds, and other small-grained cereals.
1. Comprehensive Working Principle
Uniform Feeding and Vibratory Loosening
Material enters the inclined vibrating screen surface at a steady rate. Through reciprocating vibration, the material is thoroughly loosened and spread evenly across the screen, preventing clumping or piling and laying the foundation for effective stratification and separation.
2. Size-Based Screening and Separation
Utilizing screens with varying mesh sizes, mechanical screening is performed:
Large impurities float to the surface and are discharged; fine sand and dust pass through the screen and fall away; and the qualified material remains on the screen, thereby completing the initial separation of impurities based on size.
3. Multi-Stage Air Classification: Separating Light from Heavy
The machine is equipped with multiple adjustable air ducts, allowing vertical and lateral airflow to penetrate the material layer:
Light impurities (dust, shriveled grains, broken hulls, moldy grains, and chaff) are carried away by the airflow and collected;
Plump, heavy seeds remain stable on the screen, effectively achieving the removal of light impurities.
4. Gravity-Based Density Stratification
Continuous vibration of the screen surface, combined with a uniform upward airflow, causes the material to automatically stratify based on density and weight:
Low Density: Shriveled grains, insect-damaged grains, and inferior grains float to the surface.
High Density: Plump, high-quality grains sink to the bottom layer.
Heavy impurities—such as stones and dense soil clods—remain in direct contact with the screen surface.
5. Counter-Directional Movement and Separate Discharge
Leveraging the angle of the screen surface and the specific direction of vibration:
Qualified material flows downward along the screen surface and is discharged;
Heavy stones and dense impurities move in the opposite direction (upward against the incline) and are discharged separately;
Inferior light grains and sub-standard seeds are diverted into a separate stream, thereby achieving a comprehensive classification of good vs. bad material, as well as the removal of stones and heavy impurities.
6. Enclosed Dust Removal and Pure Finished Product
The entire process takes place within a fully enclosed structure. A negative-pressure dust collection system captures airborne dust and light impurities, preventing secondary contamination and ensuring a clean working environment. This “dry processing” method also safeguards the quality and integrity of the processed material.
Air-Screen Gravity Separator: Specialized Advantages for Cleaning Chia Seeds
Multi-Stage Compound Impurity Removal: Optimized for Tiny Chia Seeds
Integrating vibration screening, multi-stage air separation, and gravity stratification into a single unit, this machine is specifically designed to address the characteristics of chia seeds—namely their minute size and light weight. It efficiently separates large debris, broken stems, dust, weed seeds, small pebbles, shriveled grains, and light moldy seeds, completing the removal of multiple impurities in a single pass for comprehensive purification.
Precise Removal of “Shoulder” Impurities and Heavy Contaminants
Leveraging the principles of airflow, vibration, and gravity stratification, the machine effectively eliminates sand, soil particles, and heavy weed seeds that are similar in size to chia seeds. This overcomes the limitations of standard screening (which only separates by size) and resolves the persistent challenge of removing heavy contaminants from small-sized materials.
Gentle Sorting: Low Material Loss and No Damage
Utilizing low-amplitude, gentle vibration combined with low-pressure, uniform airflow, the machine ensures a smooth and steady flow of material. Given that chia seeds have thin, fragile husks that are prone to cracking, the entire operation is designed to be free of compression or strong impact; this prevents grain breakage and preserves the original physical integrity of the raw seeds, resulting in a high yield of finished product.
Adjustable Air Separation: Effective Removal of Light Impurities and Dust
With independently adjustable multi-channel airflow, the machine allows for precise control of air volume. This ensures that dust, lint, empty husks, and shriveled, inferior grains are thoroughly blown away without inadvertently carrying off plump, high-quality seeds. This eliminates material waste and ensures the finished product is clean and free of airborne dust.
Customized Screens with Self-Cleaning Design: Eliminating Clogging
Equipped with screens featuring apertures specifically customized for chia seeds, the machine also incorporates an automatic “bouncing ball” self-cleaning mechanism. This prevents fine seeds and dust from adhering to and clogging the screens, allowing for continuous, long-duration operation ideal for large-scale batch processing.
Automated Stratification and Sorting: Integrated Grading and Quality Enhancement
By utilizing differences in specific gravity, the machine automatically stratifies the material to separate plump, high-quality seeds from semi-filled grains and inferior, light-weight particles. This process not only removes impurities but also simultaneously grades the seeds, thereby enhancing the overall plumpness and commercial marketability of the chia seed product.
Highly Versatile and Easy to Adjust
Air velocity, screen inclination, vibration frequency, and feed rate can all be flexibly adjusted. The machine allows for rapid switching between small-grained oilseeds—such as chia seeds, flaxseeds, and sesame seeds—offering multi-purpose functionality within a single unit.
Dry, Enclosed Operation: Preserves Quality and Facilitates Storage
The entire cleaning process utilizes a dry method combined with enclosed dust removal, ensuring no moisture is added to the product. This eliminates the risks of dampness-induced clumping and mold growth, thereby preserving the physicochemical quality of the chia seeds and meeting the rigorous standards required for long-term storage and food-grade raw materials.
Premium Components and Durability: Stable Performance
Key components—including the transmission system, electrical controls, and vibration-damping parts—feature high-quality specifications. This design minimizes wear and tear while ensuring a low failure rate, making the machine ideal for continuous, long-duration production runs and significantly reducing the need for downtime and maintenance.
Applications of the TAOBO Air-Screen Gravity Separator
I. Oilseeds
Cleaning, impurity removal, destoning, quality enhancement, and grading of small-grained oilseed crops such as sesame, chia seeds, flaxseeds, sunflower seeds, pumpkin seeds, safflower seeds, rapeseed, linseed, perilla seeds, and others.
II. Miscellaneous Grains and Legumes
Cleaning of various miscellaneous grains and legumes—including soybeans, mung beans, adzuki beans, kidney beans, chickpeas, lentils, peas, sorghum, millet, brown rice, oats, buckwheat, and Job’s tears—to remove dust, straw, moldy grains, shriveled grains, stones, and insect-damaged grains.
III. Cereal Grains
Cleaning of raw grains—such as wheat, corn, rice, barley, and rye—to remove impurities, imperfect grains, and stones of similar size and density, thereby enhancing grain purity and commercial grade.
