Gravity De-stoner Applications:
Gravity de-stoner can remove the stones or heavier impurities such as straw from the different materials, like sesame, mung beans and other grains and pulses,oil seeds. Gravity de-stoner are crucial for the grain and legume processing industries. After it removes stones and impurities, the yield and purity of grains and beans are greatly improved, and the quality of the materials is also guaranteed.
Gravity De-stoner Structure：

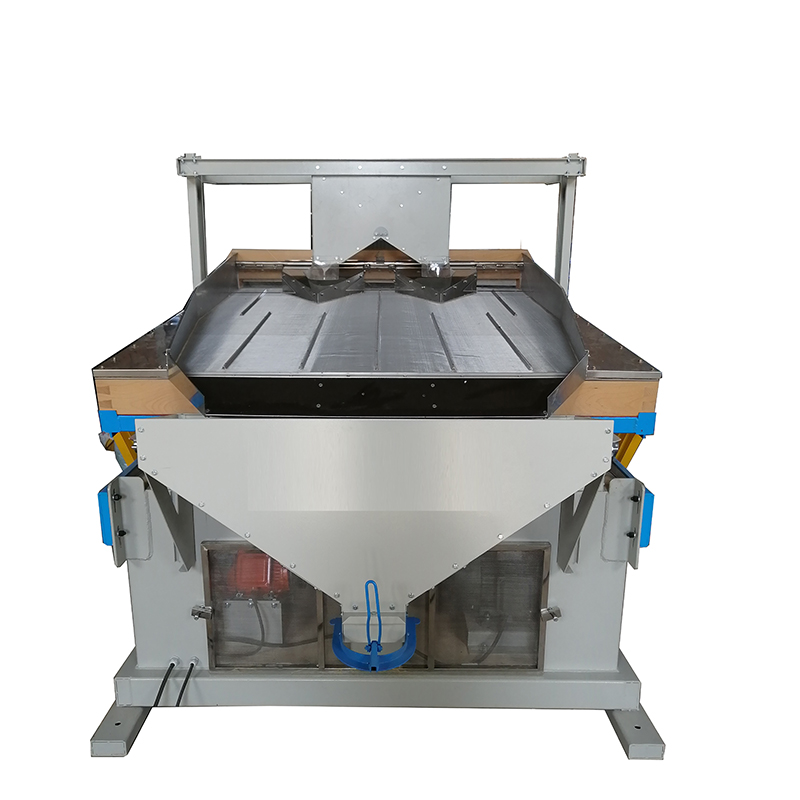

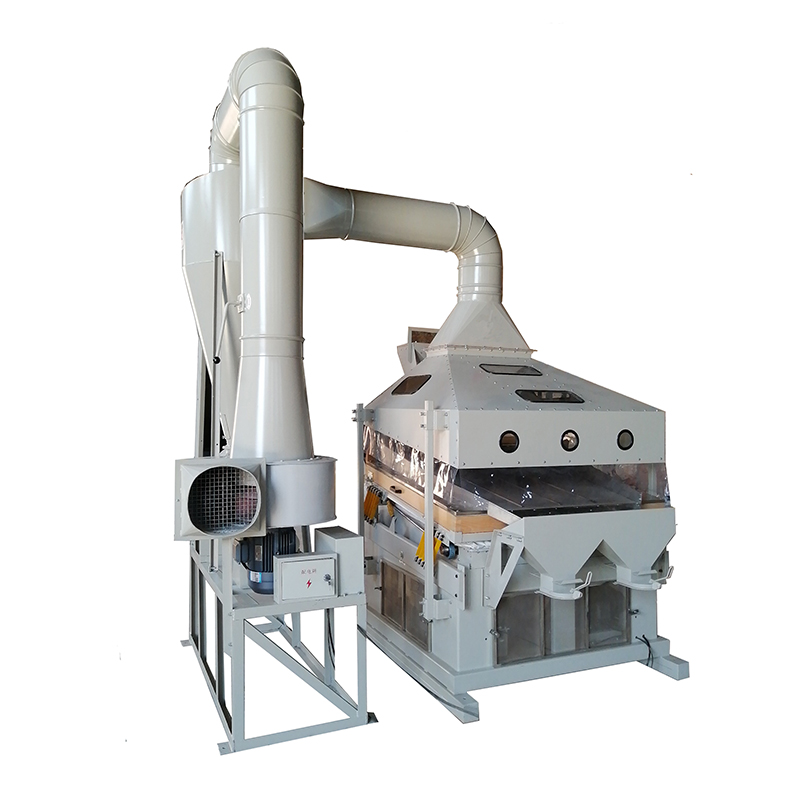

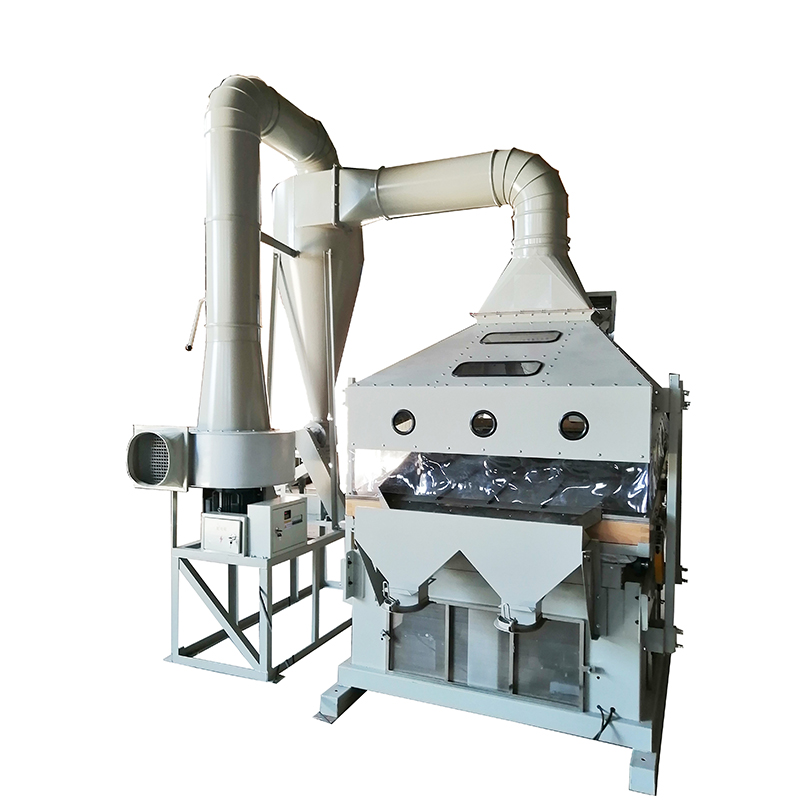

The gravity de-stoner consists of vibration screen,gravity screen,gravity table,fans machines frame and transducer.
Gravity De-stoner Processing Works:
The materials fall evenly from the bulk grain box to the working surface of the specific gravity table. Due to the reciprocating vibration of the working surface and the action of wind power, the stones with heavy specific gravity sink to the bottom of the material layer, and the materials with lower specific gravity float on it, forming a initial layering between the materials and the stone. The materials in the upper layer are driven by wind and gravity, and continue to move along the inclined working surface towards the discharge port (lower end), slide into the discharge hopper, and are discharged out of the machine through the discharge hopper. Due to its large specific gravity (larger than the material), the stone is easily in contact with the mesh surface. It crawls toward the stone outlet (high end) due to the friction of the working mesh surface, slides into the stone outlet hopper, and is then discharged out of the machine through the stone outlet hopper.
Gravity De-stoner Advantages：
1.We use TR bearings, they have a longer service life
2.Low-speed, damage-free elevator.
3.The table is made of stainless steel woven mesh, which can directly contact the grain and is made of food-grade stainless steel.
4.The wood frame is the beech imported from the United States, the cost is higher. The base is thicker (120*60*4 100*20*3), and it is more stable.
5.The net of the air room is made of stainless steel, waterproof and rust-proof.
6.Improves overall seed and grain processing efficiency.
7.Easy to operate and move.
8.We use the most advanced frequency converter, it can adjust the amplitude of vibration to adapt to different types of materials .
9.Sand blasting appearance protecting from rusting and water
10.Gravity de-stoner is equipped with internal fans, and fans, vibration system both have their own motors.
